AX PRO Wireless Alarm System
HIKVISION DS-PDP18-HM-WB Wireless Double PIR Detector User Guide
| Gateway | Price |
|---|---|
| PayPal | $99.15 |
د.إ367.23

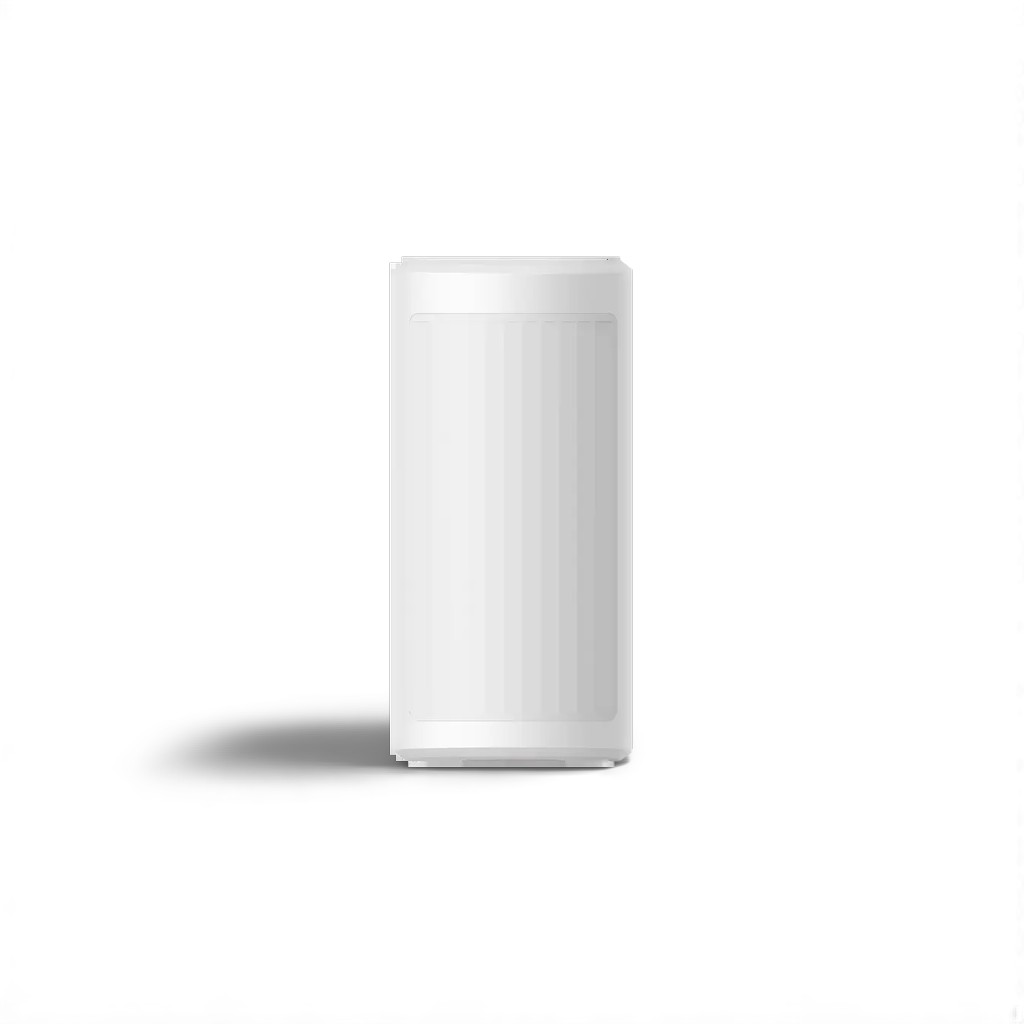

Wireless Double PIR Detector
- High/Low mount adjustment
- IP65 weather resistance for outdoor application
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Related products
-
AX PRO Wireless Alarm System
Hikvision DS-PDMCS-EG2-WB Wireless Slim Magnet Detector
- Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range15 m
- Detection Angle90° @180° adjustable
- Detection Zones92
- Detectable Speed0.3～2m/s
- SensitivityAuto;Low
- White Light Filter10000lux
- Microwave Frequency24GHz(24.15～24.25GHz)
- Pet Immunity40 kg
- Digital Temperature CompensationSupport
- Anti-maskingSupport
- Adaptable Coverage
Support,
Pattern mask included
- Feature
- Digital ProcessingTri-Signal Logic
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Anti-Sway AnalyticsSupport
- Interface
- Power SwitchPower up enrolling
- LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency868MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1.6Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery LifeUp to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
- Power SupplyBattery powered
- Battery TypeCR123A × 5
- Typical Voltage3V
- General
- Operation Temperature-25°C to 60°C (-13°F to 140°F)
- Storage Temperature-25°C to 60°C (-13°F to 140°F)
- Operation Humidity10% to 90%
- IP RateIP65
- Dimension(WxHxD)75 mm × 202 mm × 73 mm
- Weight600 g
- Mounting Height0.8 m to 1.2 m
- Mounting MethodWall
- Application ScenarioOutdoor
SKU: DS-PDMCS-EG2-WB
