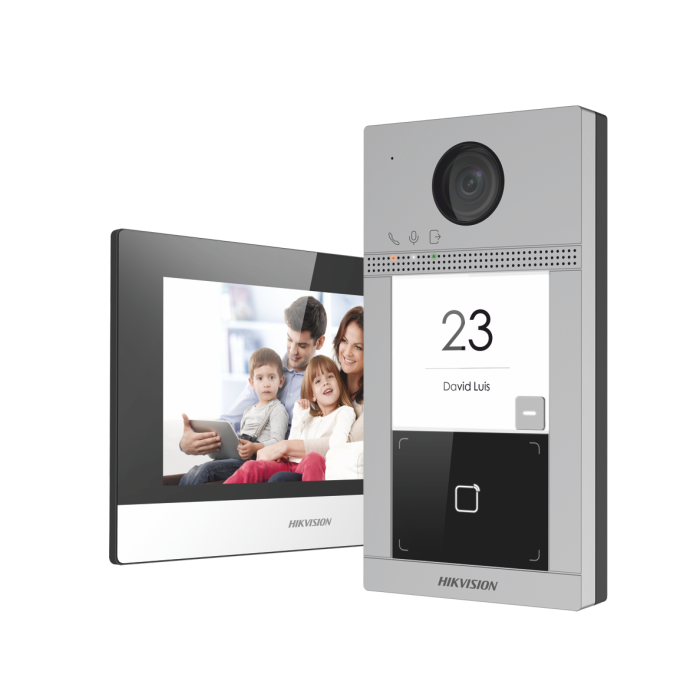

Hikvision DS-KIS604-P(C) IP Video Intercom Kit with 7″ Touchscreen

IP video intercom kit

• IP video intercom kit for villa or house
• One call button for easier calls
• Convenient Hik-Connect APP Mobile Control
• Stores messages and captured pictures in the TF card

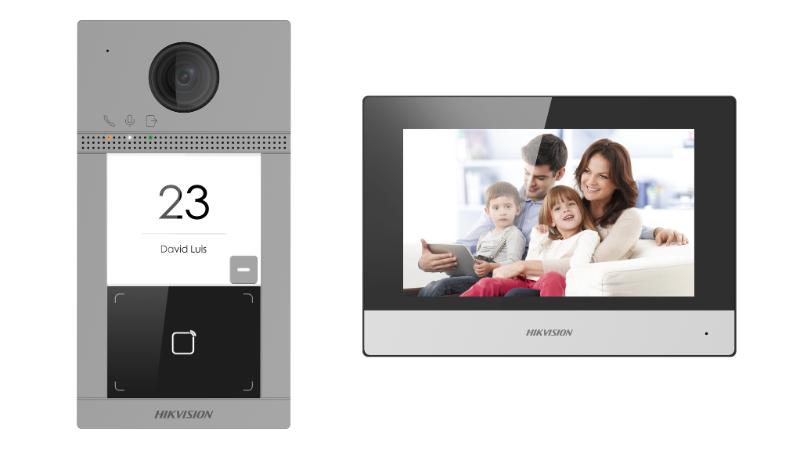

• Including: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2, 16 GB TF card × 1
• Power adapter included in the package

•

  Specification

  • Door station/System parameters

  • Door station/Video parameters

  • Door station/Audio parameters

  • Door station/Capacity parameters

  • Door station/Network parameters

  • Door station/Device interfaces

  • Door station/General

  • Indoor station/System parameters

  • Indoor station/Display parameters

  • Indoor station/Audio parameters

  • Indoor station/Network parameters

  • Indoor station/Device interfaces

  • Indoor station/General

  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash

    32 M

  • RAM

    256 M

  • Door station/Video parameters
  • Supplement lightIR supplement
  • Resolution

    Main stream : 1920 × 1080

    Sub stream : 640 × 480

  • Lens1
  • WDRSupport
  • FOVHorizontal: 124° Vertical: 75°
  • Video compression standardH.264

  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
  • Volume adjustmentAdjustable
  • Audio compression standardG.711 U, G.711 A
  • Audio compression Rate64 Kbps
  • Audio intercom

    Two-way audio communication

  • Audio qualityNoise suppression and echo cancellation

  • Door station/Capacity parameters
  • User capacity2000

  • Door station/Network parameters
  • Network protocolTCP/IP, RTSP
  • Wi-FiWi-Fi 802.11 b/g/n
  • Wired network10/100 Mbps self-adaptive Ethernet
  • 3G/4G/
  • Bluetooth/

  • Door station/Device interfaces
  • Network interface1
  • RS-4852
  • Wiegand0
  • Lock control2
  • Exit button2 Max.
  • Door contact2
  • Alarm input4
  • Alarm output0
  • Power interface1
  • TAMPER1
  • USB interface0
  • TF card1 (reserved)

  • Door station/General
  • Button1
  • Indicator3
  • Power consumption

    ＜ 10 W

  • Power supply

    Standard PoE/12 VDC;IEEE802.3af, standard PoE

    12 VDC

  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • InstallationSurface mounting
  • Application environmentOutdoor
  • Protection level

    IP65, IK08

  • Weight380 g

  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash32 MB

  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen

  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio quality

    Noise suppression and echo cancellation

  • Audio compression standard

    G.711 U

  • Audio compression Rate

    64 Kbps

  • Indoor station/Network parameters
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Wired network

    10/100 Mbps self-adaptive

  • Wireless network

    Wi-Fi 802.11 b/g/n

  • Protocol

    TCP/IP, SIP, RTSP

  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version

  • Indoor station/General
  • Power consumption

    ≤ 6 W

  • Power supplyStandard PoE,12VDC
  • Working temperature

    -10 °C to 55 °C (14 °F to 131 °F)

  • Working humidity10% to 90%
  • Dimension (L x W x H)

    200 mm × 140 mm × 15.1 mm (7.9″ ×

    5.5 × 0.6\”)”
