AX PRO Wireless Alarm System
Hikvision DS-PDTT15AM-LM-WE Outdoor Two-Way Wireless Triple Signal Detector with Anti-Masking, White
AX PRO Wireless Alarm System
Hikvision DS-PDTT15AM-LM-WE Outdoor Two-Way Wireless Triple Signal Detector with Anti-Masking, White
Detection Performance
Detection MethodPassive Infrared;Microwave
Detection Range15 m
Detection Angle90° @180° adjustable
Detection Zones92
Detectable Speed0.3～2m/s
SensitivityAuto;Low
White Light Filter10000lux
Microwave Frequency24GHz(24.15～24.25GHz)
Pet Immunity40 kg
Digital Temperature CompensationSupport
Anti-maskingSupport
Adaptable Coverage
Support,
Pattern mask included
Feature
Digital ProcessingTri-Signal Logic
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Anti-Sway AnalyticsSupport
Interface
Power SwitchPower up enrolling
LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
Standard Battery LifeUp to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
Power SupplyBattery powered
Battery TypeCR123A × 5
Typical Voltage3V
General
Operation Temperature-25°C to 60°C (-13°F to 140°F)
Storage Temperature-25°C to 60°C (-13°F to 140°F)
Operation Humidity10% to 90%
IP RateIP65
Dimension(WxHxD)75 mm × 202 mm × 73 mm
Weight600 g
Mounting Height0.8 m to 1.2 m
Mounting MethodWall
Application ScenarioOutdoor
SKU: DS-PDTT15AM-LM-WE

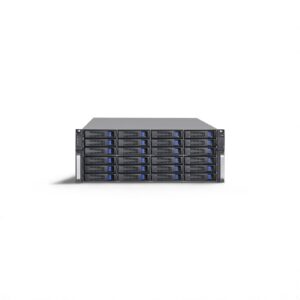

HiKvision Hybrid SAN

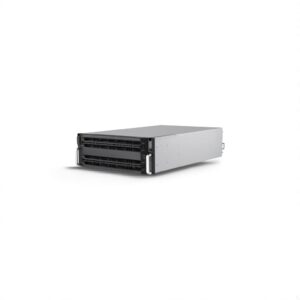

DS-A83048S-ICVS 48-slot High-performance Cluster Storage Hikvision
